Arcus S1 Red T300 Carbon Pickleball Paddle

Thickness: 14 mm
Face: T300 carbon fiber, smooth finish
Core: PP honeycomb
Weight: Confirmed on sample

The Arcus S1 Red T300 Carbon Pickleball Paddle is a 14 mm paddle with a smooth T300 carbon fiber face and a PP honeycomb core (cold-cut assembly). Listed size is 398 mm × 198 mm (15.67 in × 7.80 in). We make it as a catalog design for private label, custom artwork and wholesale orders, starting from an approved sample.

Last updated 27 October 2026

Request a quote for this paddle Order a sample

Specification & artwork

Full specification

Prices are in USD per paddle (per set for sets), EXW our factory in Dongguan, for orders from 50 paddles per design. Estimated prices use a related build. Freight, FOB delivery and changes to the build are quoted separately.

Arcus S1 - Red

EXW price: USD 14.65 per paddle

Face: T300 carbon fiber, smooth finish
Core: PP honeycomb
Construction: Cold-cut assembly
Thickness: 14mm
Listed paddle length: 398 mm / 15.67 in
Listed paddle width: 198 mm / 7.80 in
Handle length: 127 mm / 5.00 in
Grip circumference: 112 mm / 4.41 in
Listed weight: Confirm current sample weight

Measured on one production sample

Weight: 225.6 g
Swingweight: 105.5 kg·cm²
Balance point: 226 mm from the butt end
Face deflection: 0.076 mm (0.0030 in) under a 3 kg centre load

Specifications from our product schedule. Final configuration and any missing fields are confirmed on the approved sample.

About Arcus S1 Red

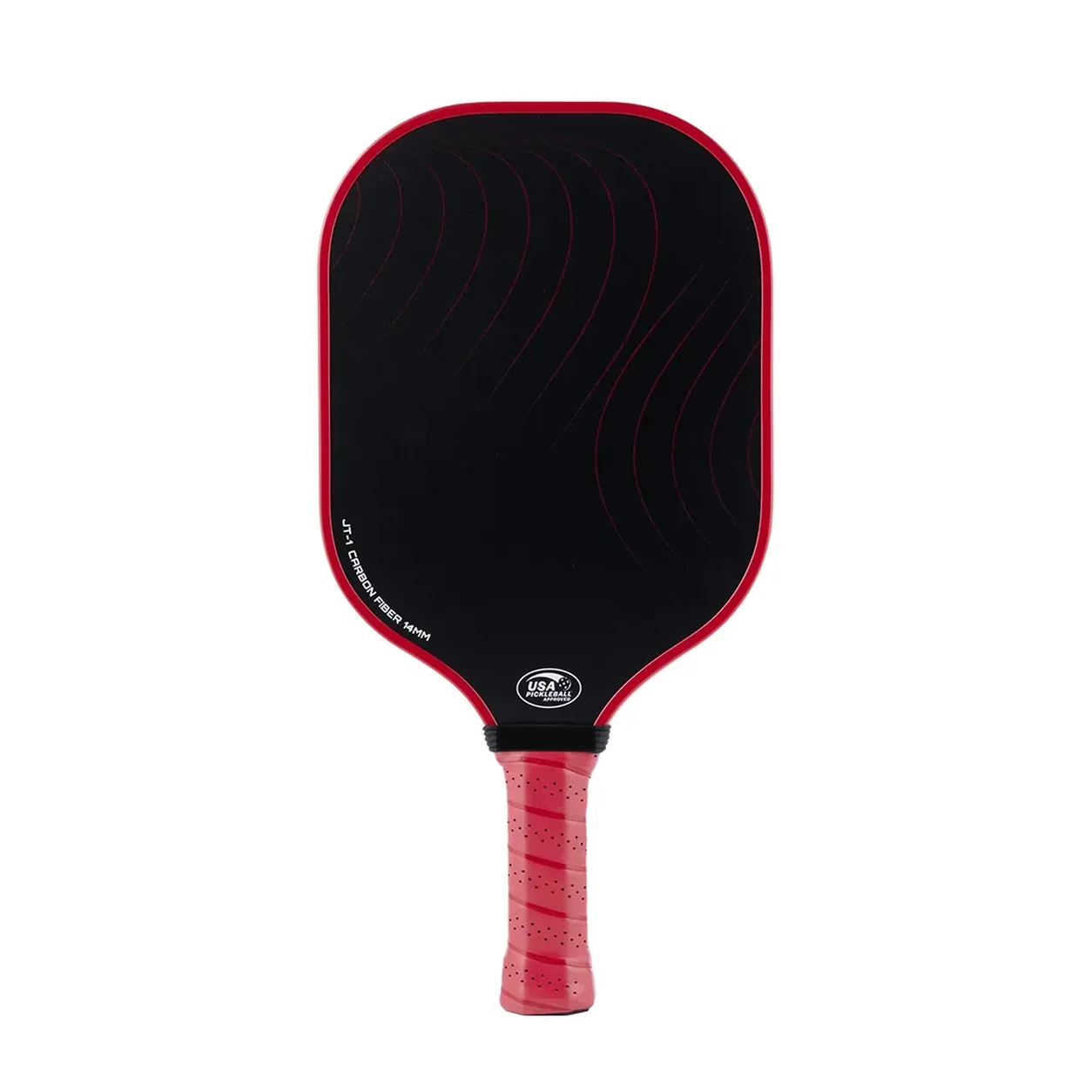

Arcus S1 Red is a black carbon face crossed by fine red contour lines, with a red edge guard and red grip. The series is listed in eight colours: black, white, red, pink, purple, blue, green and yellow. That makes Arcus S1 a simple base for a colour-coded retail line or a club range in team colours.

How Arcus S1 Red is built

Arcus S1 Red is 14 mm thick, with a three-layer, smooth T300 carbon fiber face over a PP honeycomb core. It is a cold-cut build: the face and core are cut and bonded without heat curing. This is our quickest and most economical route, which suits entry-level retail, club starter programmes and promotional orders.

It uses a wide-body outline of 398 × 198 mm (15.67 × 7.80 in) with a 127 mm (5.00 in) handle and a 112 mm grip circumference. This is the widest face in our range. The shorter handle gives the face more of the overall length.

Read how cores compare in our paddle core guide, and see the mold and outline options on the specification checklist.

What ships with it

It is listed as a single paddle with no accessories. Boxes, covers and grips can be added from our accessories and packaging options.

Making it your own

We print your artwork on the T300 carbon face and can change the edge guard, grip and packaging. The core, the 14 mm thickness and the JT-1 mold stay as listed unless you approve a structural revision on a new sample. For a full brand programme, see private label paddles and custom paddle development.

What to check on your Arcus S1 Red sample

Length and width: 398 × 198 mm
Thickness: 14 mm
Handle and grip: 127 mm handle, 112 mm grip circumference
Finished weight: measured and recorded on the sample
Artwork, edge guard and grip colour against your approved design

Record the approved values in your order, following our sampling and approval steps.

Frequently asked questions

Is Arcus S1 Red within USA Pickleball size limits?

Yes, on the listed dimensions. USA Pickleball allows a maximum length of 17 in and a combined length and width of 24 in. The listed outline is 15.67 in long and 23.46 in combined, 0.54 in under the limit. Size is only one rule; approval for sanctioned play is a separate listing, explained on our paddle certification page.

How is Arcus S1 Red different from Vokar Red?

The build is the same: 14 mm, three-layer T300 face, PP honeycomb core, JT-1 mold. Only the artwork changes. Arcus S1 uses fine contour lines on black, while Vokar uses a bold abstract pattern. Arcus S1 is also listed in eight colours, against four for Vokar.

Is Arcus S1 Red also sold as a set?

Yes. The Arcus S1 Red set pairs two Arcus S1 Red paddles with four balls, a towel and two overgrips.

What does the listed price include?

It is the price per paddle in USD, EXW our factory in Dongguan, for orders of at least 50 paddles per design, with the listed accessories and standard box. Freight, FOB delivery and any changes to the build or packaging are quoted separately. Prices marked as estimates are based on a related build and are confirmed in your quotation.
