Catalog paddle

Vortex T300 Carbon Pickleball Paddle

Thickness: 14 mm
Face: T300 carbon fiber, smooth finish
Core: PP honeycomb 6mm cell diameter
Weight: 220±5g

The Vortex T300 Carbon Pickleball Paddle is a 14 mm paddle with a smooth T300 carbon fiber face and a PP honeycomb core (cold-cut assembly). Listed size is 398 mm × 198 mm (15.67 in × 7.80 in), with a listed weight of 220 ± 5 g. We make it as a catalog design for private label, custom artwork and wholesale orders, starting from an approved sample.

Last updated 27 October 2026

Request a quote for this paddle Order a sample

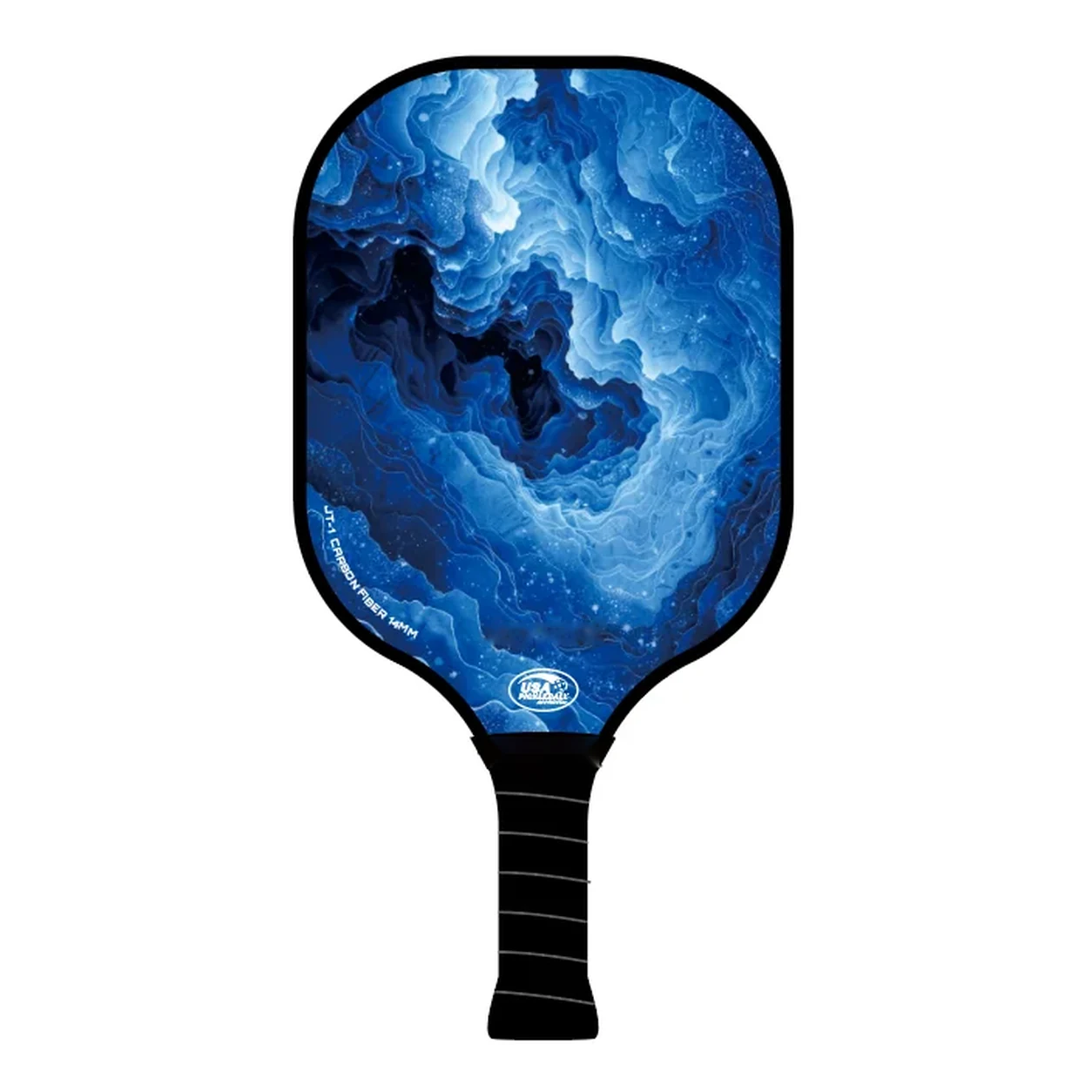

Vortex paddle design reference — Similar design shown. Final artwork is confirmed on your sample.

Specification & artwork

Full specification

Prices are in USD per paddle (per set for sets), EXW our factory in Dongguan, for orders from 50 paddles per design. Estimated prices use a related build. Freight, FOB delivery and changes to the build are quoted separately.

Vortex

Estimated EXW price: USD 35.57 per paddle

Face: T300 carbon fiber, smooth finish
Core: PP honeycomb 6mm cell diameter
Construction: Cold-cut assembly
Thickness: 14mm
Listed paddle length: 398 mm / 15.67 in
Listed paddle width: 198 mm / 7.80 in
Handle length: 127 mm / 5.00 in
Grip circumference: 112 mm / 4.41 in
Listed weight: 220±5g

Measured on one production sample

Weight: 225.6 g
Swingweight: 105.5 kg·cm²
Balance point: 226 mm from the butt end
Face deflection: 0.076 mm (0.0030 in) under a 3 kg centre load

Specifications from our product schedule. Final configuration and any missing fields are confirmed on the approved sample.

About Vortex

Vortex has a blue star-swirl artwork on a three-layer T300 carbon face. It shares the 14 mm JT-1 build with Rift and Surge JT-1. It is the blue design in our value carbon line.

How Vortex is built

Vortex is 14 mm thick, with a three-layer, smooth T300 carbon fiber face over a PP honeycomb core with 6 mm cells. Listed weight is 220 ± 5 g. It is a cold-cut build: the face and core are cut and bonded without heat curing. This is our quickest and most economical route, which suits entry-level retail, club starter programmes and promotional orders.

It uses a wide-body outline of 398 × 198 mm (15.67 × 7.80 in) with a 127 mm (5.00 in) handle and a 112 mm grip circumference. This is the widest face in our range. The shorter handle gives the face more of the overall length.

Read how cores compare in our paddle core guide, and see the mold and outline options on the specification checklist.

What ships with it

It is listed as a single paddle with no accessories. Boxes, covers and grips can be added from our accessories and packaging options.

Making it your own

We print your artwork on the T300 carbon face and can change the edge guard, grip and packaging. The core, the 14 mm thickness and the JT-1 mold stay as listed unless you approve a structural revision on a new sample. For a full brand programme, see private label paddles and custom paddle development.

What to check on your Vortex sample

Length and width: 398 × 198 mm
Thickness: 14 mm
Handle and grip: 127 mm handle, 112 mm grip circumference
Finished weight against the listed 220 ± 5 g
Artwork, edge guard and grip colour against your approved design

Record the approved values in your order, following our sampling and approval steps.

Frequently asked questions

Is Vortex within USA Pickleball size limits?

Yes, on the listed dimensions. USA Pickleball allows a maximum length of 17 in and a combined length and width of 24 in. The listed outline is 15.67 in long and 23.46 in combined, 0.54 in under the limit. Size is only one rule; approval for sanctioned play is a separate listing, explained on our paddle certification page.

Is Vortex the same build as Rift?

Yes: 14 mm, three-layer T300 face, PP honeycomb with 6 mm cells, JT-1 mold. Only the artwork differs.

What does the listed price include?

It is the price per paddle in USD, EXW our factory in Dongguan, for orders of at least 50 paddles per design, with the listed accessories and standard box. Freight, FOB delivery and any changes to the build or packaging are quoted separately. Prices marked as estimates are based on a related build and are confirmed in your quotation.
